Replanning Integrating Mean Flow with DTAMP
Overcoming dynamics hallucination in long-horizon manipulation by integrating Mean Flow, Flow matching with DTAMP-based replanning strategies.
1. Overview
Following my work on Flow Matching, I encountered significant limitations when scaling to long-horizon tasks in Ogbench and Franka Kitchen. While the standard Diffuser could produce smooth trajectories, it lacked long-term consistency, often failing to chain multiple sub-tasks (e.g., opening a drawer, then grasping an object).
To address this, I pivoted to DTAMP (Diffused Task-Agnostic Milestone Planner), drawing inspiration from its ability to recover performance via replanning when milestones are missed. Which could compensate for the accumulating dynamics error in a long horizon task. My primary objective was to visualize trajectory convergence in the milestone dimension, demonstrating how the robot incrementally approaches its sub-goals. Furthermore, because the inference latency of standard diffusion is too high for practical replanning loops, I implemented Mean Flow and Flow Matching with step skipping to ensure the system could replan within a feasible timeframe.
2. The Challenge: Identifying the Optimal Replanning Trigger
To implement robust replanning, the fundamental challenge was not just how to replan, but determining “When is replanning necessary?”. Answering this required verifying the integrity of the entire planning pipeline.
Diagnosis of Failure Modes: I broke down the potential failure points into three verification steps:
Representation: Is the milestone latent space learned correctly?
Generation: Are the generated milestones semantically valid?
Execution: Is the robot actually arriving at these milestones?
Findings & Bottleneck: My analysis revealed that while the representation space was well-structured and milestone generation was generally appropriate (despite occasional redundant loops like lifting and replacing a cube), the primary failure occurred in execution—the robot frequently failed to reach the target milestone.
Overcoming Visualization Limitations: Verifying these states using dimensionality reduction (UMAP/t-SNE) was effective in simpler environments like Franka Kitchen, but failed to provide clear clusters in the complex Ogbench tasks. To resolve this ambiguity, I trained a dedicated Observation Decoder to reconstruct latent milestones back into visual images. This allowed me to visually confirm that while the planner intended valid states, the low-level controller was failing to converge, accurately pinpointing the need for replanning.
3. Methodology: Meanflow-DTAMP & Replanning
To compensate the dynamics error, I integrated Mean Flow into the DTAMP framework to facilitate stable milestone replanning.

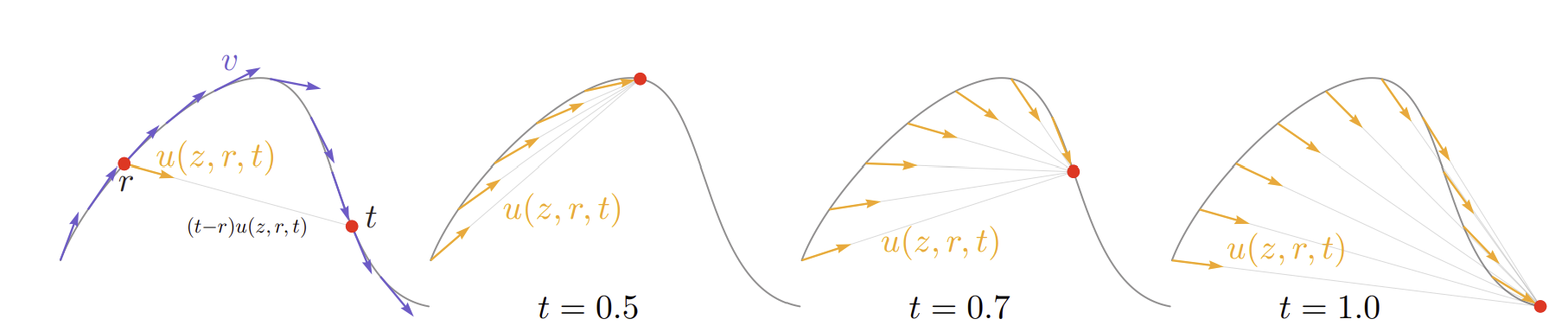

3.1 Mean Flow
Unlike standard diffusion which is stochastic, I implemented Mean Flow, which models the field of average velocity $u(z,r,t)$. This deterministic approach aligns the generation process with the displacement vector, reducing variance and allowing for consistent one-step sampling that is crucial for real-time replanning.
\[u(z_t, r, t) = v(z_t, t) - (t-r)\frac{d}{dt}u(z_t, r, t)\]

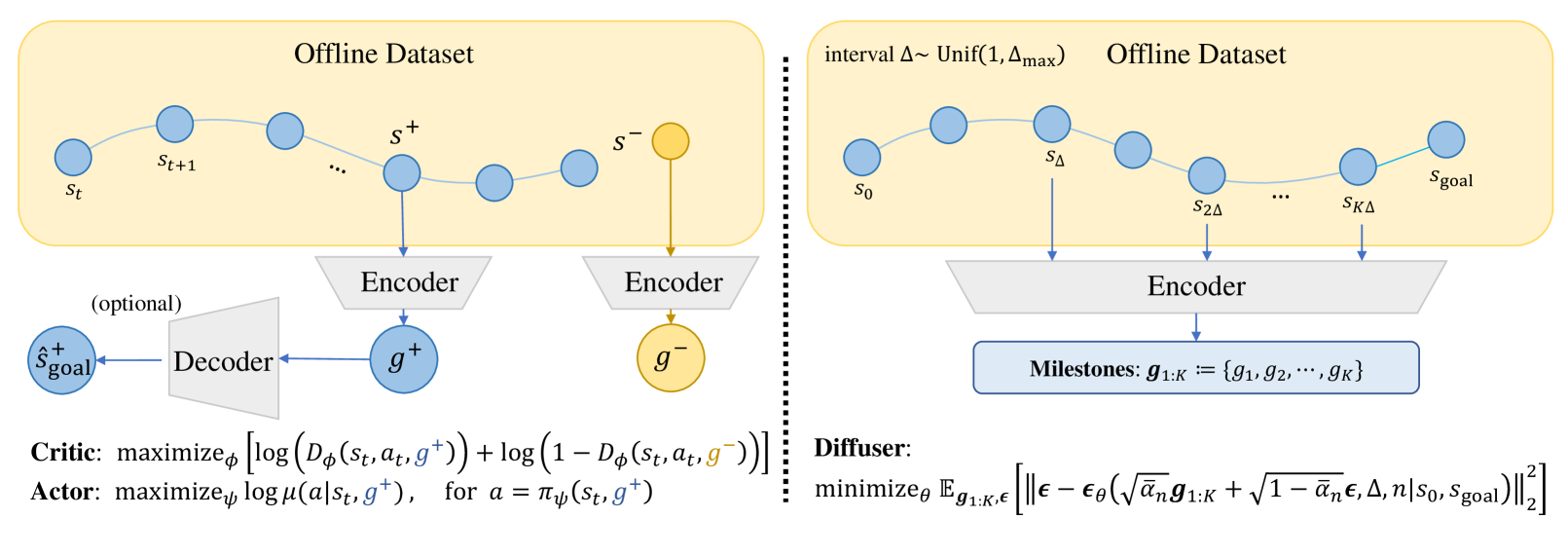

3.2 DTAMP with Target Interval Conditioning
I adopted the DTAMP architecture, which conditions the generator on a target interval ($\Delta$) between milestones. This mechanism enables the planner to decompose long-horizon tasks (e.g., “Cube-double-play”) into a sequence of reachable sub-goals (milestones, $g_{1:K}$). By explicitly controlling this interval, I ensured that consecutive milestones are generated close enough for the low-level action policy to reach them reliably, thereby preventing execution failures.
4. Key Experiments & Analysis

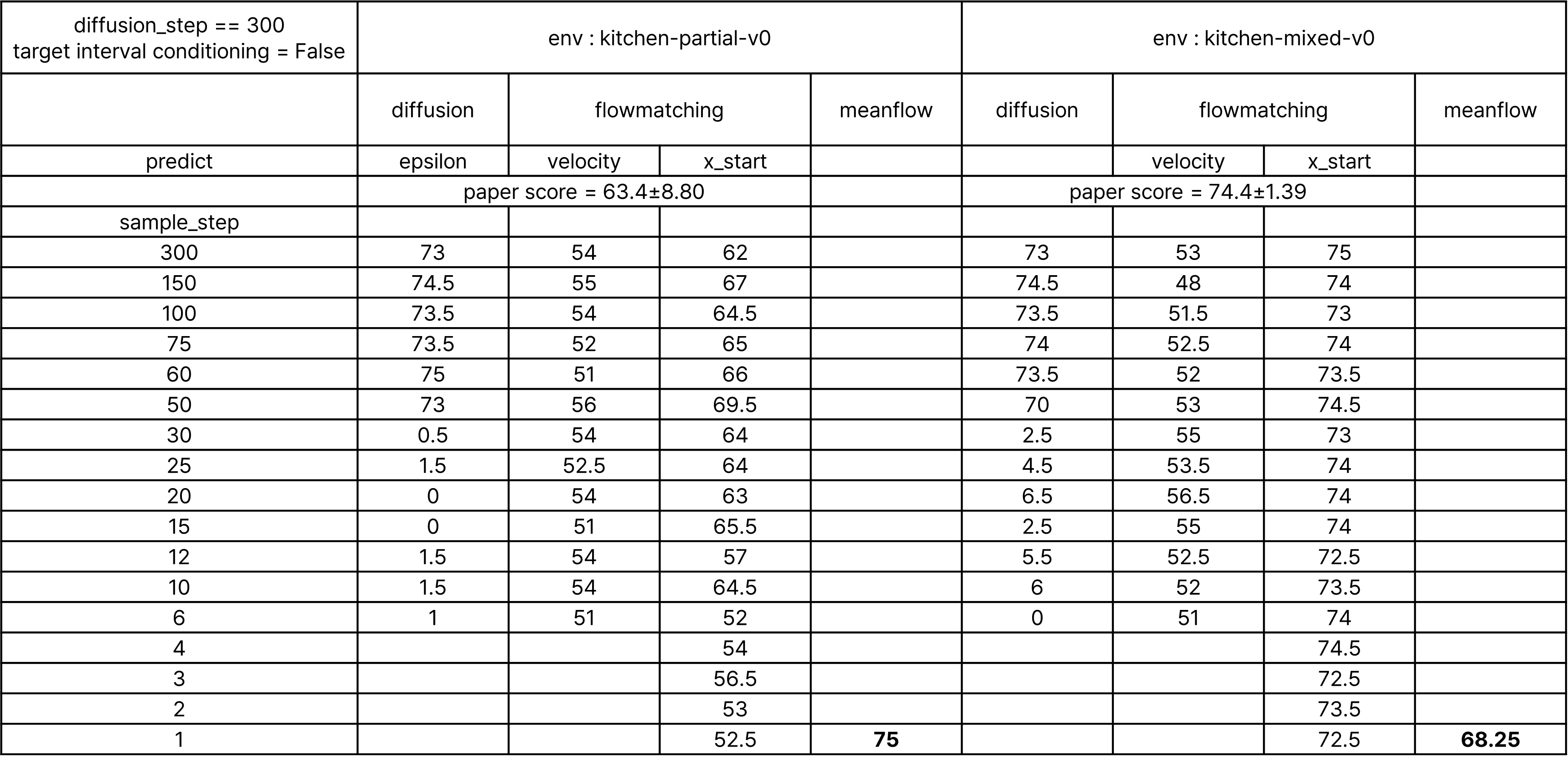

4.1 Meanflow vs. Diffusion Performance
I compared Meanflow against standard Diffusion and Flow Matching on the Franka Kitchen Tasks. Meanflow demonstrated superior stability, achieving competitive or higher scores in mixed environments with minimal inference latency. Unlike diffusion, which requires hundreds of iterations, Meanflow’s deterministic sampling allowed for maintaining high trajectory fidelity even when compressed to a single step.
4.2 Ogbench Milestone Analysis
In the challenging Ogbench Cube-Double-Play task, I analyzed the “Milestone Distance” metric to evaluate execution stability. The graph below illustrates the distance between the robot’s current state and the target milestone over time.
- Ideal Pattern (Sawtooth): The red line typically shows a gradual decline as the robot approaches a milestone, followed by an immediate spike when it switches to the next target. This repetitive “approach-and-switch” pattern indicates successful execution.
- Failure Mode & Replanning: A critical issue arises when the robot exceeds the maximum time limit for a milestone. The system forces a switch to the next target, often causing the distance to explode as the robot falls behind the planned trajectory. This abnormal spike serves as a clear, data-driven trigger to discard current plans and regenerate new milestones.
4.3 Embedding Space Analysis (UMAP)
To diagnose planning reliability, I visualized the goal embeddings using UMAP. This analysis revealed a stark contrast between environments:

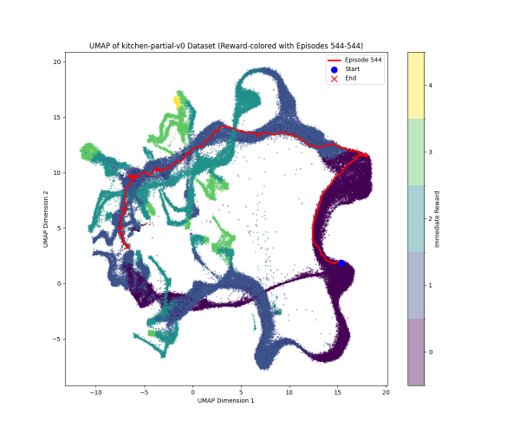

- Franka Kitchen (Success): The manifold structure was distinct, allowing for clear verification of generated milestones and trajectories.

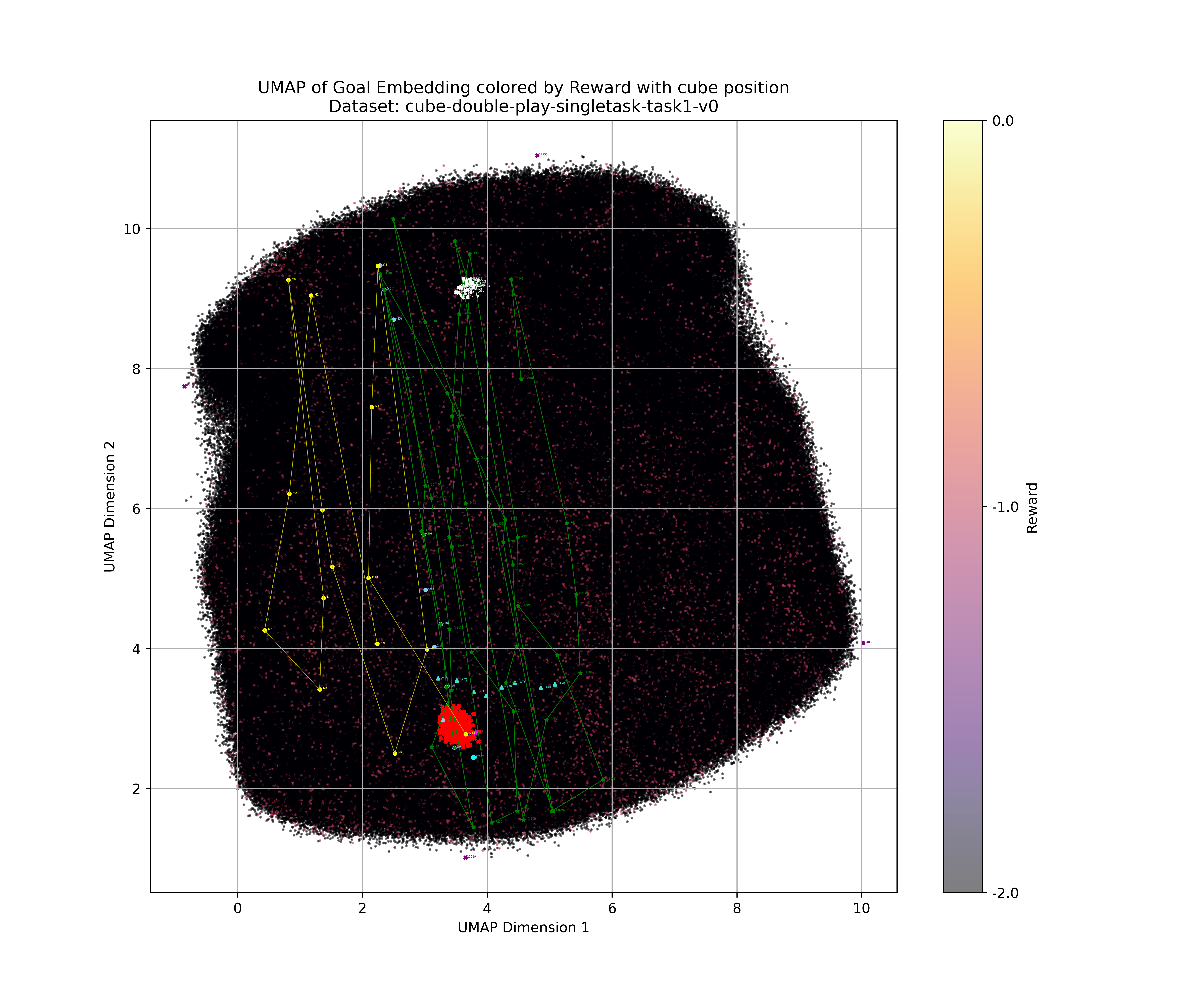

- Ogbench (Challenge): Unlike Kitchen, verifying milestone tracking in Ogbench was significantly more difficult. While local behaviors appeared consistent with physical laws (i.e., the milestone state converged as the actual state approached the target), the global UMAP visualization failed to capture these relationships distinctly. This ambiguity made it difficult to confirm visually whether the robot was truly “moving towards” the generated milestones, necessitating more robust verification methods like the Observation Decoder.
5. Insights & Contributions
5.1 Robustness via Replanning
Insight: My experiments confirmed that in stochastic environments like Ogbench, open-loop planning is insufficient due to unpredictable dynamics errors.
Contribution: I introduced a milestone-based replanning framework that enables the robot to dynamically recover from execution failures (e.g., grasping errors). By monitoring trajectory deviation in real-time, the system triggers replanning to correct the path, preventing episodes from terminating prematurely.
5.2 Topological Density for Policy Reachability
Insight: The success of hierarchical planning heavily depends on the reachability between sub-goals. Sparse milestones create blind spots where the low-level policy fails to find a feasible path to the next target.
Contribution: I identified that milestone density is a critical factor for complex manipulation. By optimizing the target interval to generate denser milestones, I ensured that consecutive sub-goals remain within the local policy’s reach, significantly improving task success rates.
5.3 Real-Time Feasibility with Mean Flow
Insight: Effective replanning requires generating new trajectories almost instantly, which is computationally prohibitive with standard stochastic diffusion models.
Contribution: I transitioned the generative backbone to Mean Flow, enabling deterministic 1-step sampling. This architectural shift drastically reduced inference latency, allowing the robot to generate high-fidelity trajectories in real-time without the computational overhead of iterative diffusion steps.
