MEDi

Problem

Many over-the-counter medicines come in near-identical packaging, and braille is almost never printed on the box. For a blind or low-vision shopper, that makes picking the right product on a crowded pharmacy shelf slow and risky: a similar-looking box can hold a different drug. General-purpose reading and magnifier apps help with text, but they are not built for this task. They can be slow, describe everything in view rather than the one item the user cares about, and are not reliable enough for medical labels.

We built MEDi at 2nd Company to handle one narrow job well: the user says what they are looking for, points at a product, and the app tells them whether they have the right one.

How it works

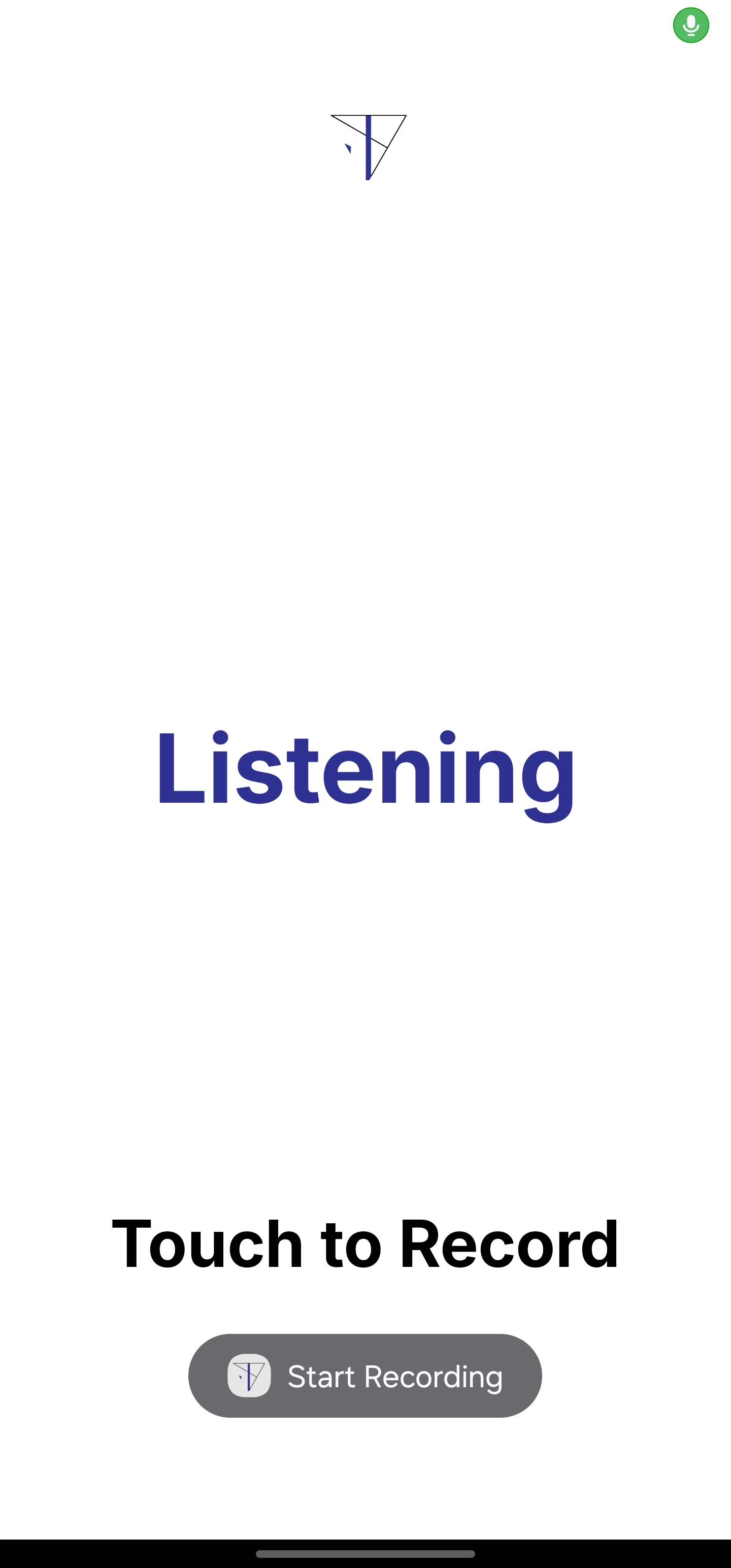

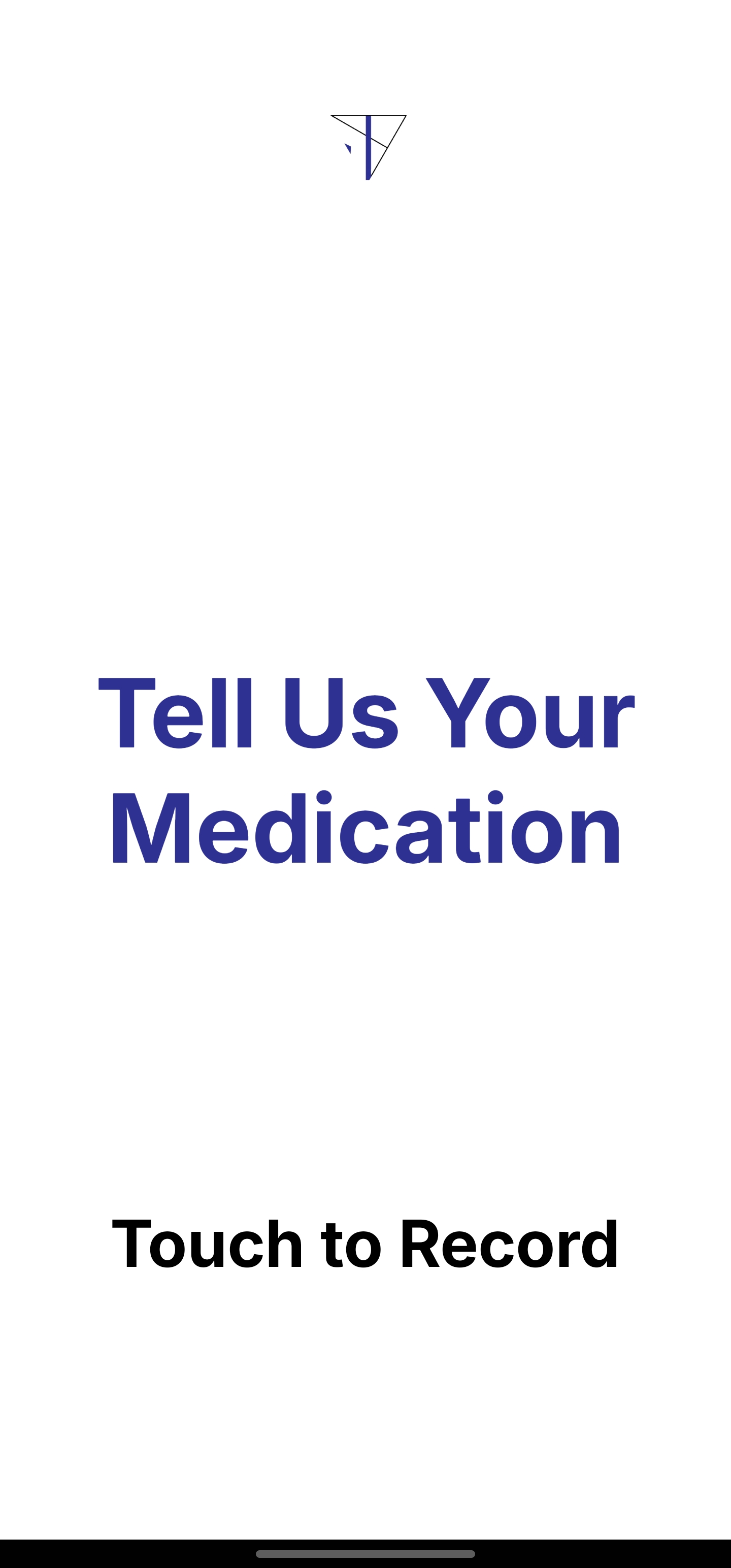

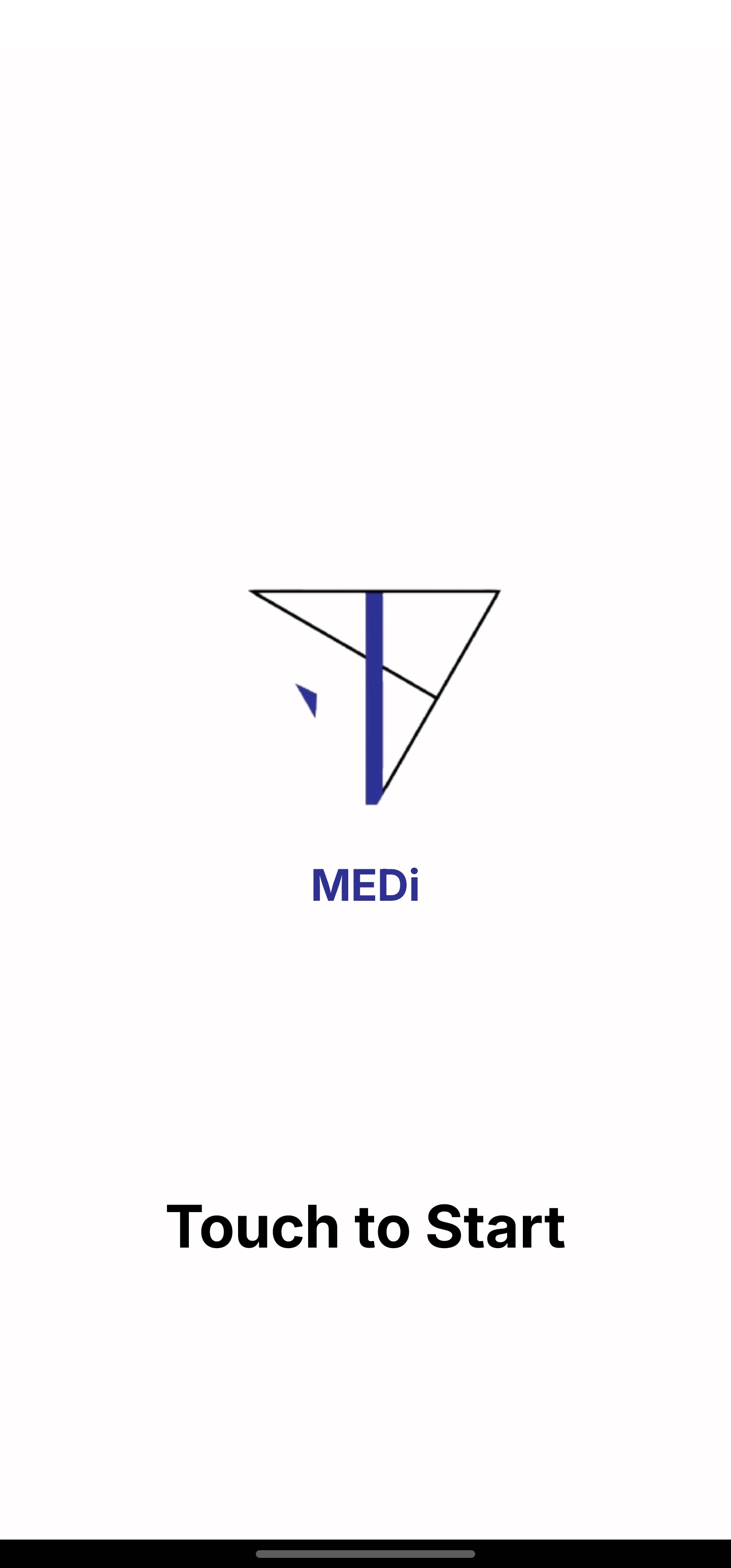

The interaction is a short loop. The user taps to start, says the name of the medication, and then points the phone camera at the shelf. From that point everything runs on the device, which keeps latency low and keeps camera frames on the phone.

Two models run on each camera frame. An object detector, running in TensorFlow Lite, finds and labels products on the shelf. MediaPipe Hand Landmarker tracks the user’s hand. We chose an off-the-shelf hand tracker so our own effort could go into product detection, which no existing model covered.

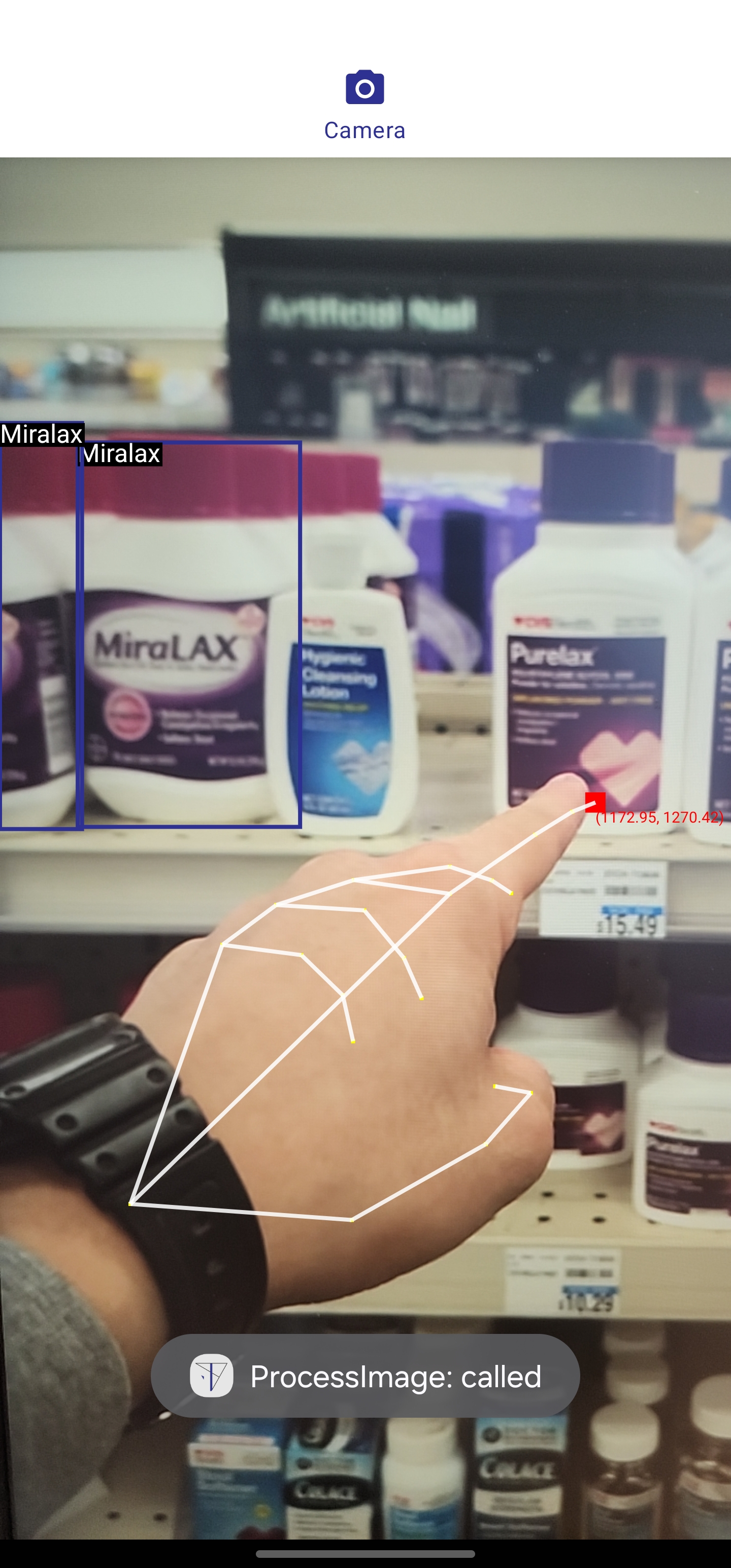

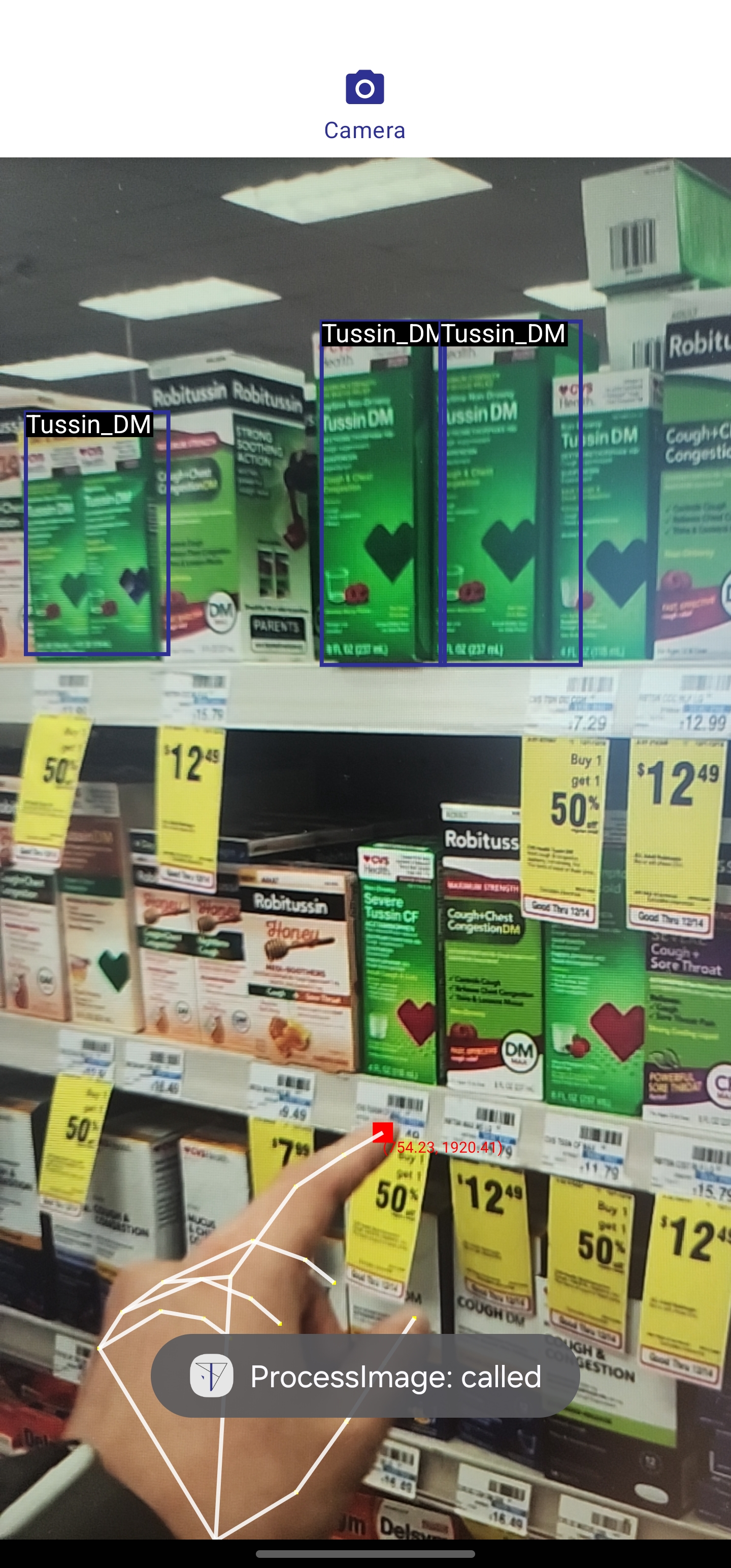

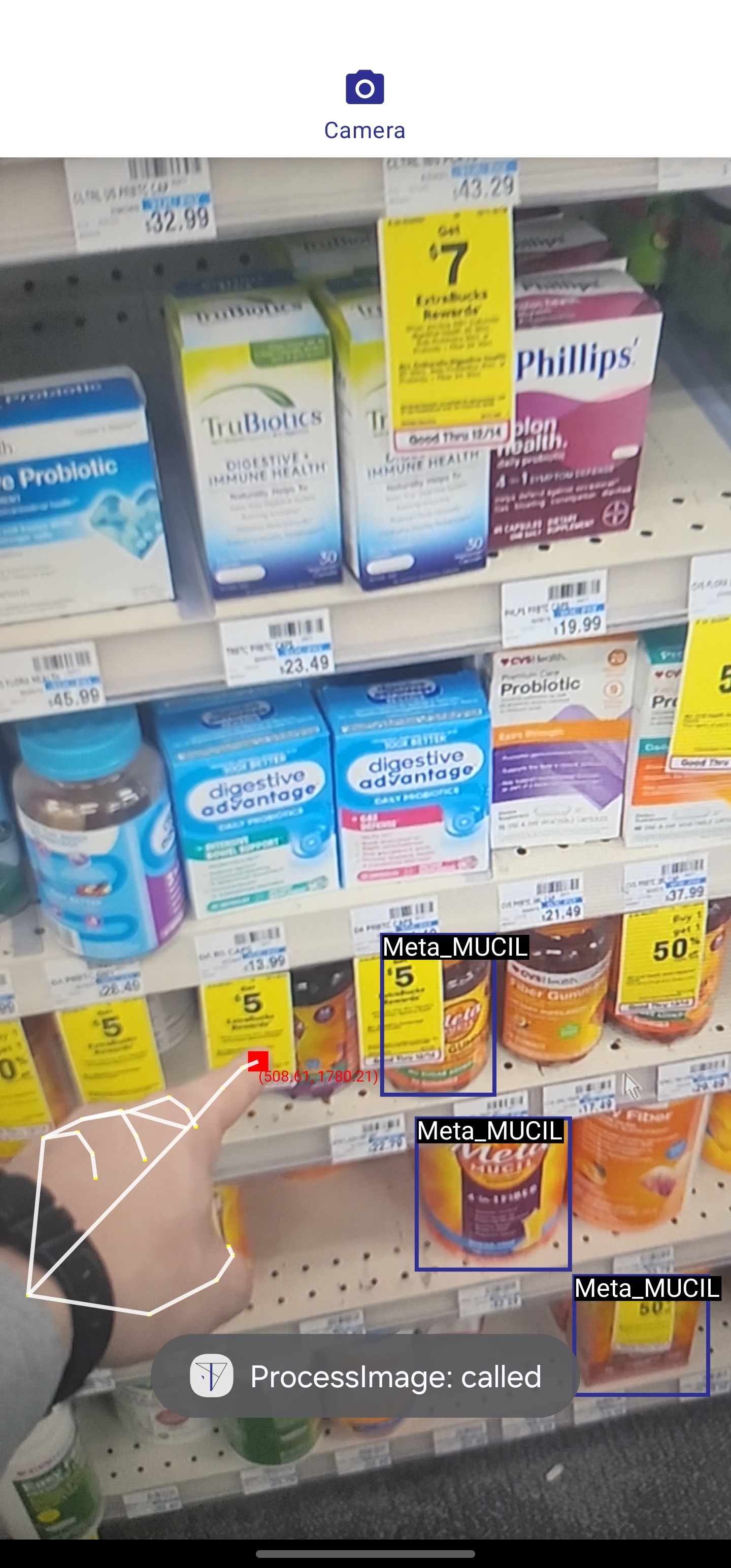

The app then takes the index-fingertip landmark and checks which detected bounding box, if any, contains it. If the user is pointing at the requested product, the app confirms it out loud. If they are pointing at something else, it names that product and says which direction the target is in.

Data and model

Hand-labeling shelf footage does not scale, so we used a hybrid dataset. For training, we used standardized product images crawled from the web to synthetically generate 2,000 images. For validation and testing, we used only real video we filmed at an on-campus convenience store. The prototype product set included beverages as well as over-the-counter medicines. Keeping real footage out of training gave an honest measure of how the model does in a real store.

We managed annotation and augmentation (brightness, contrast, rotation) in Roboflow. On a held-out set of 20 real images, the detector reached 0.76 mAP. Per-class scores varied, and weaker classes such as ZzzQuil are the clearest place to add training data.

My contribution

I led the latency work. The first version of the detector was too slow on phone hardware for real-time guidance to be usable. I made two changes. First, I converted the detection model to TensorFlow Lite and quantized it, which cut the model size substantially while keeping accuracy at 0.76 mAP. Second, I restructured the pipeline so hand tracking and object detection run as separate asynchronous streams, so neither model has to wait for the other. Together these changes brought the loop to a point where the feedback feels responsive.

What’s next

• Expand the detector to a much larger catalog of pharmaceutical products. This mostly means collecting and labeling more data.
• Add OCR to read dosages, warnings, and especially expiration dates from the packaging.
• Test in more varied stores, with different layouts, lighting, and packaging, and add help with navigating inside the store.

MEDi is in beta testing on Google Play.
